BOPET film is used in applications that require a thin material with high tensile strength, dimensional stability, optical clarity, printability, and reliable barrier performance. It is widely found in flexible packaging, electrical insulation, labels, laminates, metallized films, industrial components, and optical or protective film structures.
BOPET stands for biaxially oriented polyethylene terephthalate. Unlike ordinary PET sheet that may be extruded and used directly, BOPET is stretched in both the machine and transverse directions during manufacturing. This orientation changes the internal polymer structure and gives the film stronger mechanical and dimensional properties.
So, what is BOPET film used for in practice? Its applications range from food and consumer packaging to electronics, industrial insulation, printing, solar-control films, and high-performance laminates. The correct grade depends on thickness, surface treatment, clarity, barrier requirements, electrical properties, and downstream processing.
BOPET is a polyester film made from polyethylene terephthalate resin. During production, the PET material is extruded into a film and then stretched in two perpendicular directions before being heat-set.
The biaxial orientation aligns the polymer chains more effectively than in ordinary unoriented PET. This improves tensile strength, dimensional stability, film uniformity, and resistance to deformation while allowing manufacturers to produce relatively thin films.
Because of these characteristics, BOPET works particularly well in applications where a thin flexible film still needs to remain strong and stable during printing, laminating, coating, metallizing, winding, or high-speed converting.

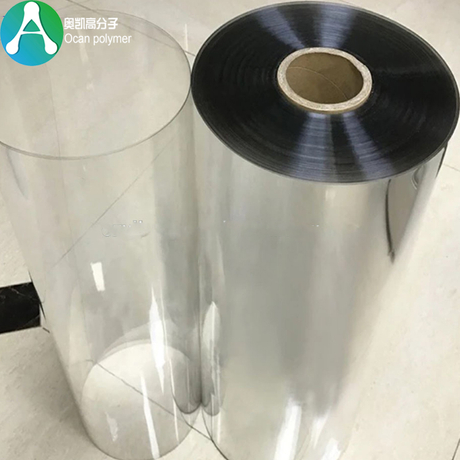

Suzhou Ocan Polymer Material Co., Ltd. offers a dedicated BOPET Sheet Roll range for packaging and industrial applications.
Ordinary PET can be processed into bottles, rigid sheets, trays, films, and other forms. APET sheet, for example, is widely used for clear thermoformed packaging because it remains relatively easy to heat and form.
BOPET goes through an additional orientation process. Once the film has been stretched and heat-set, it becomes much more dimensionally stable and mechanically strong but is generally less suited to deep thermoforming than ordinary APET sheet.
This makes BOPET particularly valuable for continuous roll applications rather than thick rigid packaging structures.
A BOPET film may be only a fraction of a millimeter thick while still providing excellent handling strength for printing, coating, laminating, and industrial converting.
The popularity of BOPET comes from the combination of several properties rather than one single advantage.
Property | BOPET Characteristic | Why It Matters |
|---|---|---|
Tensile Strength | High | Supports thin films and high-speed processing |
Dimensional Stability | Excellent | Helps maintain registration and shape |
Optical Clarity | Excellent in clear grades | Useful for packaging and optical applications |
Surface Smoothness | High | Supports printing, coating, and metallizing |
Gas Barrier | Good | Useful in packaging laminates |
Moisture Barrier | Moderate in uncoated film | Can be improved by coatings or metallizing |
Thermal Stability | Good | Supports industrial processing |
Electrical Insulation | Excellent | Useful in electronic and electrical products |
Printability | Good with suitable surface treatment | Useful for graphics and packaging |
Metallizing | Excellent substrate | Supports high-barrier and decorative structures |
BOPET is especially useful when manufacturers need a strong film without significantly increasing material thickness.
Its dimensional stability is equally important. The film resists stretching and shrinking during many converting operations, helping maintain printing accuracy and coating uniformity.
OCAN's BOPET Film for Packaging Electronics & More is positioned around high strength, optical performance, and dimensional stability for demanding applications.
Packaging is one of the most common BOPET film applications.
The film is often used as an outer or middle layer within laminated flexible packaging rather than as the only layer. It can provide strength, stiffness, printability, optical appearance, and gas-barrier performance while another polymer layer provides heat sealing.
BOPET is widely used in flexible packaging structures for snacks, coffee, dried foods, seasonings, confectionery, frozen foods, and other consumer products.
Its mechanical strength allows thin packaging structures to withstand high-speed printing, laminating, filling, transportation, and handling.
The smooth surface is also suitable for high-quality graphics, helping packaging maintain sharp branding and printed details.
However, standard BOPET is not automatically an ideal heat-sealing layer. Packaging structures frequently laminate BOPET with PE, CPP, or other sealable materials to combine printability and strength with reliable sealing.
Uncoated BOPET provides useful gas-barrier performance, particularly against oxygen and aromas.
For products requiring higher protection, BOPET can be coated, laminated, or metallized. These additional layers can significantly improve oxygen, moisture, light, or aroma barrier performance.
This is why BOPET is commonly found in multilayer packaging systems rather than being evaluated as an isolated film.
A metallized BOPET layer, for example, can provide a metallic appearance while improving protection against light and gas transmission.
BOPET can also be used in laminates for cosmetics, pharmaceutical products, personal care items, and other sensitive packaged goods.
These markets may require good appearance, print registration, dimensional stability, and barrier performance.
Product specifications should still reflect the exact packaged contents. Packaging for pharmaceuticals or food may require specific migration, safety, or regulatory documentation that is not required for ordinary industrial film.
Tip: When sourcing BOPET packaging film, specify whether it will be used as a printing web, barrier layer, metallizing substrate, lamination film, or finished packaging layer.
Electrical and electronic applications are another important market for polyester film.
BOPET provides good dielectric properties, mechanical strength, dimensional stability, and resistance to many oils and chemicals used in electrical environments.
Polyester films can be used as electrical insulating layers in motors, transformers, cables, electronic components, and other electrical systems.
The film provides insulation while remaining much thinner than many traditional rigid insulating materials.
This combination of thinness and strength is valuable where components need to remain compact.
Depending on the application, specialized grades may require controlled dielectric strength, temperature classification, flame behavior, thickness tolerances, or surface treatment.
BOPET's smooth surface and dimensional stability also make it suitable as a supporting film in various electronic manufacturing processes.
It can be used as a carrier, spacer, protective layer, or substrate in products where the film must maintain its dimensions during processing.
Anti-static or specially coated grades may be required around sensitive electronics.
OCAN's BOPET range includes products positioned for packaging and electronics applications, allowing buyers to define the required surface and processing specifications according to the final use.
Printing and laminating operations benefit from materials that remain stable while moving through high-speed equipment.
BOPET performs well because it combines a smooth surface with low stretch under normal converting tension.
BOPET can support high-quality printed graphics when the surface has the appropriate treatment or coating.
Good dimensional stability helps maintain print registration across multiple colors.
This is particularly important in packaging where small alignment errors can become visible across logos, text, or decorative elements.
Corona treatment or specialized coatings may be used to improve ink adhesion depending on the printing process.
Polyester films are used in durable labels, over-laminates, release liners, and other graphic structures.
The film can protect printed surfaces from moisture, abrasion, oils, and general handling.
Compared with more flexible films, BOPET's stiffness and dimensional stability can be useful where the label needs a crisp appearance.
Industrial labels may also require resistance to heat, chemicals, or outdoor exposure, so the exact film grade and coating should be selected according to the environment.
BOPET is commonly laminated with other polymers, aluminum foil, paper, or coated layers.
Each material contributes a different property.
For example, BOPET may provide mechanical strength and printability, while PE provides sealing and moisture resistance. Aluminum foil or metallization may provide stronger light and gas barrier.
This ability to function effectively within multilayer structures is one of the reasons BOPET is used across so many packaging and industrial markets.
BOPET is an excellent substrate for vacuum metallization.
During this process, a very thin metallic layer, usually aluminum, is deposited onto the polyester surface.
The result combines the mechanical properties of BOPET with additional decorative and barrier functions.
Metallized BOPET is widely used in packaging where products require improved protection from light, oxygen, or aroma loss.
The metallic appearance can also create a premium visual effect.
Applications may include snack packaging, coffee packaging, confectionery, cosmetic products, and laminated pouches.
The final barrier performance depends on metallization quality, film structure, coating, lamination, and handling.
Metallized polyester films can provide silver, reflective, holographic, or other decorative effects.
They are used in labels, packaging decoration, gift materials, printed graphics, and specialty finishes.
BOPET's smooth surface contributes to the uniform appearance of the deposited metal layer.
Metallized polyester films can also be used in technical applications where reflective or electrical properties are required.
Specific uses may require carefully controlled metal thickness, surface resistance, insulation characteristics, or thermal behavior.
For these products, standard packaging film specifications may not be sufficient.
BOPET extends well beyond packaging.
Its strength, optical quality, thermal stability, and surface uniformity make it useful as a technical substrate in many industries.
High-clarity polyester film is widely used as a substrate in solar-control and automotive window films.
The PET film can be coated, dyed, metallized, laminated, or treated with UV-control layers to create the finished window-film structure.
Optical quality is critical because haze, scratches, or distortion become visible after installation on glass.
For this reason, solar-control applications typically require specialized optical-grade polyester rather than ordinary packaging film.
BOPET can be used as a carrier or release film during industrial manufacturing.
Its dimensional stability allows the film to support coatings, adhesives, resins, or other materials through production before being removed or incorporated into the finished product.
Applications can include adhesive processing, composites, coatings, decorative transfer, and industrial laminating.
Release performance normally requires a specific surface coating rather than standard untreated BOPET.
Polyester film is also commonly used as the carrier for hot-stamping foils and transfer products.
The BOPET substrate carries decorative coatings, metallic layers, or pigments during processing.
After transfer, the polyester carrier may be removed.
Its thermal stability and consistent thickness help make the transfer process more controllable.
BOPET may also appear in protective laminates, membrane structures, insulation systems, and composite products.
The film can provide surface protection, dimensional reinforcement, or separation between layers.
Industrial requirements vary widely, so thickness, coating, surface tension, thermal shrinkage, and tensile performance should be specified individually.
The biggest difference is orientation.
Factor | BOPET Film | Ordinary PET / APET Sheet |
|---|---|---|
Manufacturing | Biaxially stretched | Primarily extruded |
Tensile Strength | Higher | Lower |
Dimensional Stability | Higher | Moderate |
Typical Thickness | Thin film | Often thicker sheet |
Deep Thermoforming | Limited | Excellent for suitable APET |
Printing & Laminating | Excellent | Good |
Flexible Packaging | Excellent | Less common |
Rigid Trays | Less suitable | Excellent |
Metallizing | Excellent | Possible |
Electrical Insulation | Widely used | Application dependent |
APET sheet is often the better choice when manufacturers need deep thermoforming for rigid trays, clamshells, and blister packaging.
BOPET is generally more appropriate when the material must remain thin, strong, stable, and flexible through printing, lamination, metallizing, winding, or technical conversion.
Buyers should therefore avoid using “PET film” and “BOPET film” as interchangeable specifications.
The correct BOPET grade depends on what will happen to the film after it leaves the supplier.
A printing converter has different requirements from an electrical insulation manufacturer or a metallizing company.
Important selection factors include:
Thickness
Roll width
Film clarity
Haze
Surface gloss
Tensile strength
Thermal shrinkage
Surface treatment
Corona treatment level
Printability
Metallizing requirements
Lamination requirements
Heat-sealing requirements
Electrical properties
Anti-static requirements
Coating compatibility
Food-contact requirements
Roll winding quality
Dimensional tolerance
For printing and laminating, surface tension and gauge consistency may be critical.
For optical applications, haze, clarity, surface defects, and scratches become more important.
For electrical uses, dielectric properties and thermal classification may dominate the specification.
B2B buyers should define the converting process before requesting a BOPET quotation.
A request for “transparent BOPET film” alone leaves too many variables unresolved.
The buyer should provide the required thickness, roll width, application, surface treatment, printing process, lamination structure, required transparency, operating temperature, and annual volume.
Packaging also deserves attention. Rolls should be protected from contamination, impact, moisture, and edge damage during transportation.
For high-speed converting, roll winding quality becomes especially important. Uneven tension, gauge variation, telescoping, wrinkles, or damaged edges can cause production downtime.
Suzhou Ocan Polymer Material Co., Ltd. supplies PET and other polymer sheets and rolls for packaging, printing, forming, decoration, and industrial markets. Buyers can review OCAN's BOPET Sheet Roll category and broader product portfolio when developing specifications.
Tip: For a BOPET inquiry, specify what you will do to the film—print, laminate, metallize, insulate, coat, or convert—not only what final product you manufacture.
So, what is BOPET film used for? Its main applications include flexible packaging, printing, lamination, electrical insulation, electronics, labels, metallized films, solar-control structures, transfer films, protective layers, and other industrial converting processes.
BOPET is valuable because biaxial orientation gives polyester film high tensile strength, excellent dimensional stability, good optical clarity, a smooth surface, and reliable performance at relatively low thickness.
For packaging, BOPET commonly functions as a printing, strength, barrier, or metallizing layer within a multilayer structure. For electrical and industrial applications, its dimensional and insulating properties become more important.
The correct BOPET specification should therefore reflect the converting process rather than selecting film by thickness alone.
Suzhou Ocan Polymer Material Co., Ltd. offers BOPET Sheet Roll products for packaging, electronics, printing, and industrial applications. Buyers can also review the company's BOPET Film for Packaging Electronics & More when comparing customized material requirements.
A: BOPET film is widely used for flexible packaging, printing, labels, electrical insulation, electronics, metallizing, laminates, solar-control films, transfer films, and industrial applications.
A: BOPET stands for biaxially oriented polyethylene terephthalate, meaning PET film that has been stretched in both the machine and transverse directions.
A: BOPET packaging film provides high tensile strength, dimensional stability, printability, optical clarity, and useful gas-barrier performance while remaining relatively thin.
A: Standard BOPET is not always used as the primary heat-sealing layer. Packaging may use coated or heat-sealable BOPET grades, or laminate BOPET with PE, CPP, or another sealing material.
A: Yes. BOPET is widely used as a substrate for vacuum metallization because its smooth surface and dimensional stability support uniform metallic coatings.
A: Yes. Polyester film is widely used for electrical insulation because suitable grades provide good dielectric properties, mechanical strength, and dimensional stability.
A: No. BOPET undergoes biaxial stretching that increases strength and dimensional stability. Ordinary APET sheet is generally more suitable for deep thermoforming into rigid packaging.
A: Buyers should specify thickness, width, clarity, surface treatment, printing or lamination requirements, thermal performance, electrical properties, roll quality, and the final converting application.
